The 8-port (4-input, 4-output) IO-LINK master is a hybrid industrial communication device that provides:
4 IO-LINK input ports (for connecting sensors, RFID and other devices)
4 IO-LINK output ports (for controlling actuators, valve islands, indicator lights, etc.)
Supports standard IO-LINK communication (COM1/COM2/COM3)
Can be configured as digital I/O (DI/DO) mode

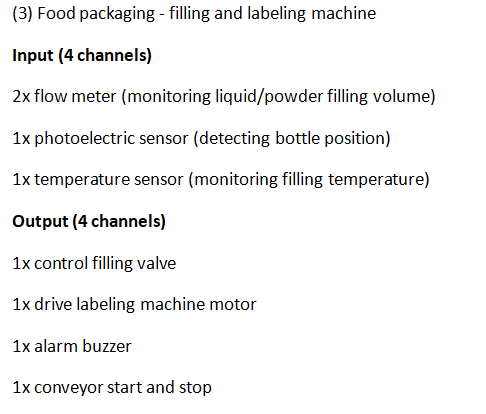

Suitable for automation scenarios that require simultaneous acquisition of sensor signals and control of actuators, such as automotive assembly, food packaging, logistics sorting, etc.
| Minimum Order Quantity | one |
| Delivery Time | 1-2 work days |
| Stock | In Stock |
| Description | 8-port series, IOLINK master station |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Model | IACM-IOLM4A4B-ECT | IACM-IOLM4A4B-PN | IACM-IOLM4A4B-EIP |
| Communication protocol |  |  |  |
Shell Material | Aluminum Alloy | ||
| Color | Silver | ||
| Product description | IO-LINK master module | ||
| 4 Class A port, 4 ClassB port, | |||
| IP67 protection class | |||
| I/O connection mode | M12, 5pin hole holder, A code | ||
| IO-Link master parameters | |||
| Number of master stations | The maximum configurable 8 ports | ||
| Master connection mode | M12, 5-core, A-code, female head | ||
| lO-link version | V1.1.2 | ||
| Communication rate | COM1:4.8KBps | ||
| COM2;38.4KBps | |||
| COM3:230.4KBps | |||
| The port voltage is L+ | type.24VDC(via US) | ||
| The port current is L+ | 2A(via US) | ||
| ClassB auxiliary voltage | type.24VDC(viaUA) | ||
| ClassB auxiliary voltage | 2A (via UA) | ||
| Class A | 4port ,X1.….X4 | ||
| Class B | 4port ,X5.….X8 | ||
| Master-master communication distance | ≤100meters | ||
| Digital input and output parameters | |||
| Number of inputs | 4 way, adaptive | ||
| Input port location | X1…X8 | ||
| Polarity of input | PNP | ||
| Signal "0" voltage | -0.3…5VDC | ||
| Signal "1" voltage | 12…30VDC | ||
| incoming current | type.5mA(via US) | ||
| Number of outputs | 4 way, adaptive | ||
| Output port location | X1…X4 | ||
| Polarity of input | PNP | ||
| current output | Single channel 2A(via UA) | ||
| Port protection | Power short circuit protection, power supply port overload protection | ||
