| Quantity: | |
|---|---|
IO-Link is an open, standardized (IEC 61131-9) industrial communication protocol used to connect sensors, actuators and controllers such as PLCs. As the core interface of field devices, IO-Link slave devices have high performance, flexible configuration and intelligence, and are widely used in the field of industrial automation.
| Minimum Order Quantity | one |
| Delivery Time | 1-2 work days |
| Stock | In Stock |
| Description | 8-port series, IOLINK master station |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Basic Parameter | |
Shell Material | PA6+GF |
| Color | Black |

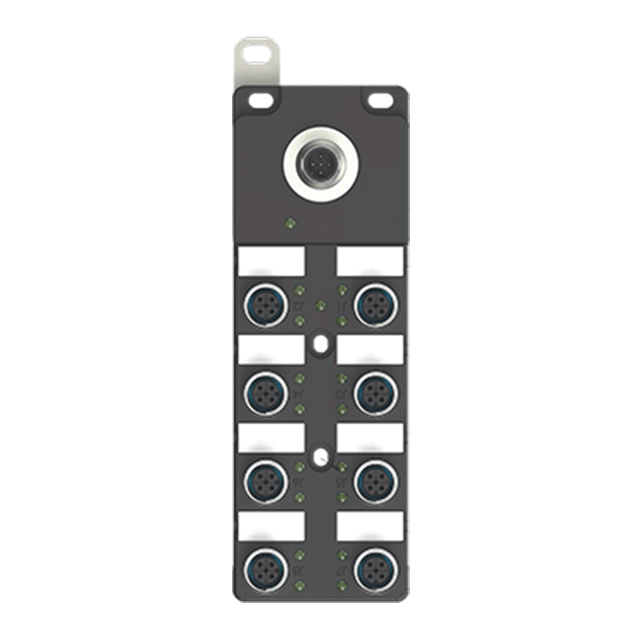

| Product description | IO-LINK Slave module |
| IP67 protection class, Epoxy full potting | |
| I/O connection mode | M12, 5pin hole holder, A code |
| Size | 155*53*28.7mm |
| Weight | 217g |
| Operating tem. | -25℃--70℃ |
| Memory Tem. | -40℃--70℃ |
| Operating Humidity | 5%-95% |
| Memory Humidity | 5%-95% |
| Operate pressure | 80Kpa-106Kpa |
| I/O port tightening torque | M12:0.5Nm |
| Application environment | Conforms to EN-61131 |
| Vibration measurement | Conforms to EN-60068-2 |
| Impact test | Conforms to EN-60068-27 |
| White by drop test | Conforms to EN-60068-32 |
| Electromagnetic Compatibility (EMC) | Conforms to EN-61000-4-2,-3,-4 |
| Certification | CE, RoHS |
| Mounting hole specification | φ4.3mm×4 |
| Communication and power parameters | |
| Connection type | 1×M12 A-code; 5- Core hole seat |
| Communication protocol | IO Link |
| Communication rate | 38.4kbit/s |
| Communication port Tightening torque | M12;0.5Nm |
| Minimum cycle | 55ms |
| System power supply voltage US | 18…30 VDC(type.24VDC） |
| Power port tightening torque | M12:0.5Nm |
| No load current consumption | ≤80mA |
| Analog input and output parameters | |
| Input. Output Quantity | 8 Channel or voltages |
| Position of the input and output ports | J1.......J8 |
| Current input/output Range | 0~20 mA 4~20 mA |
| Voltage input/output range | 0~+5 VDC;0~+10VDC; +5~+10 VDC |
| Diagnose | Contain self-diagnosis |
| Sensor power supply | 24VDC |
| Ripple wave | <1% |
| Voltage input output error | <±0.3% full scale |
| Current input/output error | <±0.3% full scale |
| Resolution ratio | 16 bit |
| Measurement display and output format | 16 bit unsigned integer |
| Factory settings | 0-+10 VDC input |
| Indicator Lights | |
| PWR | Green: The power supply to the module is Normal Off: The module power supply is not connecte |
| AI(J1......J8) | Extinguish (LEDA,LEDB):Port close Green (LEDA): The channel signal is normal and the input/output signal is within the effective range Red (LEDA): The input/output signal is out of range Red (LEDA,LEDB): Pins 1 and 3 are short-circuited or port disconnected |
| IO Link PIN DEFINITION | |
 |  |
