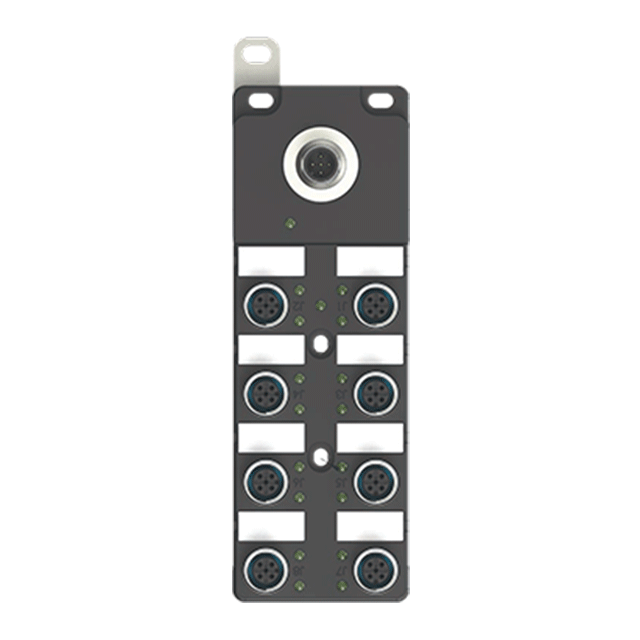

IACM-DO16P-IOL
Superisys
RS485
Anti-Metal tag
| Availability: | |
|---|---|
| Quantity: | |
| Minimum Order Quantity | one |
| Price | Large quantity price negotiable |
| Delivery Time | 1-2 work days |
| Stock | In Stock |
| Description | 16 channel digital input and output series |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Model | IACM-DO16P-IOL- IACM-DO16P-IOL-VRV | IACM-DIO16P-IOL-V IACM-DIO16P-IOL-VR | ||
| Product description | IO-LINK slave module | |||
| 8 x ports | ||||
| IP67 protection rating | ||||
| I/O connection mode | M12, 5pin socket, code A | |||
| IO-Link slave station parameters | ||||
| Number of IO-Link ports | 1x Equipment | |||
| lO-Link Processes the data length | 2 Output bytes | Two input bytes, two output bytes | ||
| Minimum cycle | 3 ms | |||
| Input and output parameters | ||||
| Quantity of input and output | 16-Channel output | 16-Way Adaptive | ||
| Rated operational voltage | 18…30V DC | |||
| Maximum load Current (Sensor) | - | 200 mA | ||
| Maximum load current (sensor) | 2A | |||
| Total current UI | - | <1.6A | ||
| Total current UO | <12A | |||
| Module indicator | ||||
| IO-LINK RUN | Green: The communication is down | |||
| Blinking green: The communication is normal | ||||
| Red: Communication is interrupted | ||||
| PWR | Green: The power supply to the module is normal | |||
| Off: The power supply of the module is not connected | ||||
| I/O | Green: The channel signal is normal | |||
| Red: The port is faulty | ||||
| AUX | Green: The auxiliary power supply is normal | |||
| Red: Auxiliary power supply is reversed | ||||
| Off: The auxiliary power supply is not connected | ||||
| Basic parameters | Shell material | PA6+GF | ||
| Shell color | Black | |||
| level of protection | IP67, epoxy full potting | |||
| Boundary dimension | 155mm×53mm×28.7mm | |||
| Weight | 227g | |||
| Operating temperature | -25℃…70℃ | |||
| Storage/transport temperature | -40℃…85℃ | |||
| Operation humidity | 5%…95% | |||
| Storage/transport humidity | 5%…95% | |||
| Operating atmosphere | 80KPa…106KPa | |||
| Preserve/transport atmospheric pressure | 80KPa…106KPa | |||
| I/O port tightening torque | M12:0.5Nm | |||
| Application environment | Conforms to EN-61131 | |||
| Vibration measurement | Comply with IEC60068-2 | |||
| Impact test | Comply with IEC60068-27 | |||
| Free drop test | Comply with IEC60068-32 | |||
| Electromagnetic Compatibility (EMC) | Comply with IEC61000-4-2,-3,-4 | |||
| Authentication | CE,RoHS | |||
| Mounting hole specification | ∅4.3mmx4 | |||
| Minimum Order Quantity | one |
| Price | Large quantity price negotiable |
| Delivery Time | 1-2 work days |
| Stock | In Stock |
| Description | 16 channel digital input and output series |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Model | IACM-DO16P-IOL- IACM-DO16P-IOL-VRV | IACM-DIO16P-IOL-V IACM-DIO16P-IOL-VR | ||
| Product description | IO-LINK slave module | |||
| 8 x ports | ||||
| IP67 protection rating | ||||
| I/O connection mode | M12, 5pin socket, code A | |||
| IO-Link slave station parameters | ||||
| Number of IO-Link ports | 1x Equipment | |||
| lO-Link Processes the data length | 2 Output bytes | Two input bytes, two output bytes | ||
| Minimum cycle | 3 ms | |||
| Input and output parameters | ||||
| Quantity of input and output | 16-Channel output | 16-Way Adaptive | ||
| Rated operational voltage | 18…30V DC | |||
| Maximum load Current (Sensor) | - | 200 mA | ||
| Maximum load current (sensor) | 2A | |||
| Total current UI | - | <1.6A | ||
| Total current UO | <12A | |||
| Module indicator | ||||
| IO-LINK RUN | Green: The communication is down | |||
| Blinking green: The communication is normal | ||||
| Red: Communication is interrupted | ||||
| PWR | Green: The power supply to the module is normal | |||
| Off: The power supply of the module is not connected | ||||
| I/O | Green: The channel signal is normal | |||
| Red: The port is faulty | ||||
| AUX | Green: The auxiliary power supply is normal | |||
| Red: Auxiliary power supply is reversed | ||||
| Off: The auxiliary power supply is not connected | ||||
| Basic parameters | Shell material | PA6+GF | ||
| Shell color | Black | |||
| level of protection | IP67, epoxy full potting | |||
| Boundary dimension | 155mm×53mm×28.7mm | |||
| Weight | 227g | |||
| Operating temperature | -25℃…70℃ | |||
| Storage/transport temperature | -40℃…85℃ | |||
| Operation humidity | 5%…95% | |||
| Storage/transport humidity | 5%…95% | |||
| Operating atmosphere | 80KPa…106KPa | |||
| Preserve/transport atmospheric pressure | 80KPa…106KPa | |||
| I/O port tightening torque | M12:0.5Nm | |||
| Application environment | Conforms to EN-61131 | |||
| Vibration measurement | Comply with IEC60068-2 | |||
| Impact test | Comply with IEC60068-27 | |||
| Free drop test | Comply with IEC60068-32 | |||
| Electromagnetic Compatibility (EMC) | Comply with IEC61000-4-2,-3,-4 | |||
| Authentication | CE,RoHS | |||
| Mounting hole specification | ∅4.3mmx4 | |||
IO-LINK Standard Compliance
Fully compatible with the IO-LINK v1.1 protocol, supporting bidirectional communication for sensor parameterization and diagnostics.
16-channel digital I/O
Provides 16 configurable input/output ports (PNP/NPN) for flexible integration of sensors, valves and actuators.
Peer-to-Peer Networking
Simplifies wiring with direct device-to-controller connection, reducing installation time and costs.
Industrial Durability
IP67 dust, water and shockproof (-25°C to 70°C) ensures long-term reliability.
Plug-and-Play Configuration
Automatically detects connected devices via the IO-LINK master, eliminating the need for manual addressing.
Enhanced Data Transparency
Minimizes downtime by transmitting real-time diagnostic information (e.g. device health, signal status) via IO-LINK communication.
Space-Saving Design
Compact form factor (80x25x60mm), ideal for compact control cabinets or distributed I/O setups.
Reduce Wiring Complexity
IO-LINK technology reduces wiring costs by up to 50% with a single cable for power, data, and configuration.
Global Certifications
Meets CE, RoHS, and IEC 61000-6-2/4 electromagnetic compatibility (EMC) standards.
This IO-LINK slave optimizes automation workflows in the following areas:
Automotive: Monitoring welding robots and conveyor sensors over an IO-LINK network.
Pharmaceutical Packaging: Controlling filling machines and label sensors with precise I/O feedback.
Food and Beverage: Managing sanitary valve controls and temperature sensors in washdown environments.
Material Handling: Coordinating palletizer actuators and photoelectric sensors in logistics centers.
Smart Factory: Integrate with IO-LINK-enabled PLCs for Industry 4.0 data-driven production.
IO-LINK Standard Compliance
Fully compatible with the IO-LINK v1.1 protocol, supporting bidirectional communication for sensor parameterization and diagnostics.
16-channel digital I/O
Provides 16 configurable input/output ports (PNP/NPN) for flexible integration of sensors, valves and actuators.
Peer-to-Peer Networking
Simplifies wiring with direct device-to-controller connection, reducing installation time and costs.
Industrial Durability
IP67 dust, water and shockproof (-25°C to 70°C) ensures long-term reliability.
Plug-and-Play Configuration
Automatically detects connected devices via the IO-LINK master, eliminating the need for manual addressing.
Enhanced Data Transparency
Minimizes downtime by transmitting real-time diagnostic information (e.g. device health, signal status) via IO-LINK communication.
Space-Saving Design
Compact form factor (80x25x60mm), ideal for compact control cabinets or distributed I/O setups.
Reduce Wiring Complexity
IO-LINK technology reduces wiring costs by up to 50% with a single cable for power, data, and configuration.
Global Certifications
Meets CE, RoHS, and IEC 61000-6-2/4 electromagnetic compatibility (EMC) standards.
This IO-LINK slave optimizes automation workflows in the following areas:
Automotive: Monitoring welding robots and conveyor sensors over an IO-LINK network.
Pharmaceutical Packaging: Controlling filling machines and label sensors with precise I/O feedback.
Food and Beverage: Managing sanitary valve controls and temperature sensors in washdown environments.
Material Handling: Coordinating palletizer actuators and photoelectric sensors in logistics centers.
Smart Factory: Integrate with IO-LINK-enabled PLCs for Industry 4.0 data-driven production.
FAQ
Q1: How do I integrate this slave with an existing PLC?
A: Connect it to any IO-LINK v1.1 compliant master (e.g. Siemens, Allen-Bradley) via a standard M12 connector.
Q2: Can it operate in high vibration environments?
A: Yes, its rugged housing and screw terminal design can withstand vibrations up to 5G (50Hz).
Q3: Does configuration require software?
A: No. The IO-LINK protocol enables automatic device identification and parameterization.
Q4: What is the maximum cable length for IO-LINK communication?
A: Up to 20 meters using shielded M12 cable (recommended for noise immunity).
Q5: Does it support legacy non-IO-LINK devices?
A: Yes, the channels can be configured in standard digital I/O mode to connect legacy sensors.
FAQ
Q1: How do I integrate this slave with an existing PLC?
A: Connect it to any IO-LINK v1.1 compliant master (e.g. Siemens, Allen-Bradley) via a standard M12 connector.
Q2: Can it operate in high vibration environments?
A: Yes, its rugged housing and screw terminal design can withstand vibrations up to 5G (50Hz).
Q3: Does configuration require software?
A: No. The IO-LINK protocol enables automatic device identification and parameterization.
Q4: What is the maximum cable length for IO-LINK communication?
A: Up to 20 meters using shielded M12 cable (recommended for noise immunity).
Q5: Does it support legacy non-IO-LINK devices?
A: Yes, the channels can be configured in standard digital I/O mode to connect legacy sensors.
