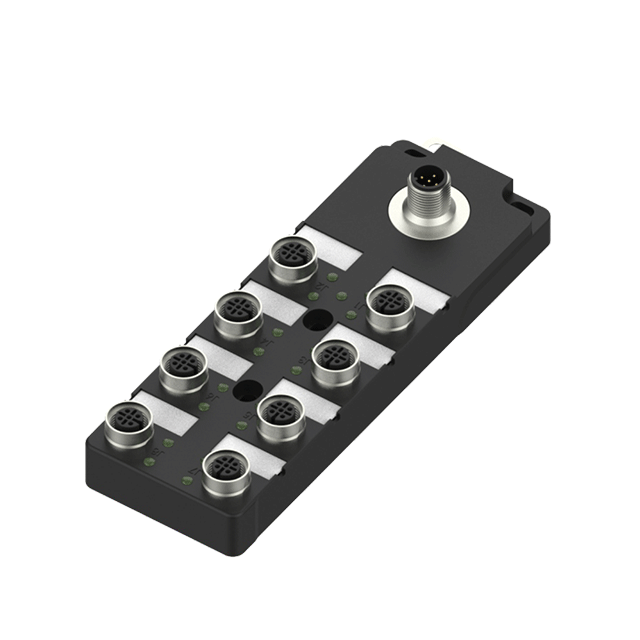

IACM-DI16P DO16P-IOL
Superisys
RS485
Anti-Metal tag
| Availability: | |
|---|---|
| Quantity: | |
1. Intelligent diagnostic function
Real-time monitoring: independent diagnosis of each channel (short circuit/open circuit/overload)
Precise alarm: locate the specific fault channel (such as "CH7 DO short circuit")
Current readback: output channel load current monitoring (±5% accuracy)
2. Configuration flexibility
Mixed mode: DI/DO allocation in any proportion (such as 12DI+4DO)
Parameterization: remote modification through the master station:
DI filter time
DO pulse width
Signal inversion logic
| Minimum Order Quantity | one |
| Delivery Time | 1-2 work days |
| Stock | In Stock |
| Description | 8-port series, IOLINK master station |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Basic Parameter | |||
Shell Material | PA6+GF | ||
| Color | Black | ||
| Product description | IO-LINK Slave module | ||
| IP67 protection class, Epoxy full potting | |||
| I/O connection mode | M12, 5pin hole holder, A code | ||
| Size | 155*53*28.7mm | ||
| Weight | 217g | ||
| Operating tem. | -25℃--70℃ | ||
| Memory Tem. | -40℃--70℃ | ||
| Operating Humidity | 5%-95% | ||
| Memory Humidity | 5%-95% | ||
| Operate pressure | 80Kpa-106Kpa | ||
| I/O port tightening torque | M12:0.5Nm | ||
| Application environment | Conforms to EN-61131 | ||
| Vibration measurement | Conforms to EN-60068-2 | ||
| Impact test | Conforms to EN-60068-27 | ||
| White by drop test | Conforms to EN-60068-32 | ||
| Electromagnetic Compatibility (EMC) | Conforms to EN-61000-4-2,-3,-4 | ||
| Certification | CE, RoHS | ||
| Mounting hole specification | φ4.3mm×4 | ||
| IO-Link Slave parameters | |||
| Type | IACM-DI16P-IOL IACM-DI16PR-IOL IACM-DI16N-IOL IACM-DI16NR-IO | IACM-DO16P-IOL IACM-DO16N-IOL IACM-DO16NR-IOL | |
| lO-Link port number | 1× slave | ||
| lO-Link Process data length | 2 input bytes | ||
| Minimum cycle | 3 ms | ||
| Input. Output quantity | 16 input | ||
| Rated operational voltage | 18--30VDC | ||
| Maximum load current (sensor) | 200mA | - | |
| Maximum load current（actuator） | - | 500mA | |
| Total current UI | ＜1.6A | - | |
| Total current UO | - | ＜2.5A | |
| Indicator Lights | |||
IO Link Run | Green: The communication is down Green flash：Normal communication Red: Communication is interrupted | ||
| PWR | Green: The power supply to the module is Normal Off: The module power supply is not connecte | Green: The power supply to the module is normal Yellow: The auxiliary power supply is not connected | |
| I/O | Green: normal channel signal red: short circuit of port power supply | ||
1. Intelligent diagnostic function
Real-time monitoring: independent diagnosis of each channel (short circuit/open circuit/overload)
Precise alarm: locate the specific fault channel (such as "CH7 DO short circuit")
Current readback: output channel load current monitoring (±5% accuracy)
2. Configuration flexibility
Mixed mode: DI/DO allocation in any proportion (such as 12DI+4DO)
Parameterization: remote modification through the master station:
DI filter time
DO pulse width
Signal inversion logic
| Minimum Order Quantity | one |
| Delivery Time | 1-2 work days |
| Stock | In Stock |
| Description | 8-port series, IOLINK master station |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Basic Parameter | |||
Shell Material | PA6+GF | ||
| Color | Black | ||
| Product description | IO-LINK Slave module | ||
| IP67 protection class, Epoxy full potting | |||
| I/O connection mode | M12, 5pin hole holder, A code | ||
| Size | 155*53*28.7mm | ||
| Weight | 217g | ||
| Operating tem. | -25℃--70℃ | ||
| Memory Tem. | -40℃--70℃ | ||
| Operating Humidity | 5%-95% | ||
| Memory Humidity | 5%-95% | ||
| Operate pressure | 80Kpa-106Kpa | ||
| I/O port tightening torque | M12:0.5Nm | ||
| Application environment | Conforms to EN-61131 | ||
| Vibration measurement | Conforms to EN-60068-2 | ||
| Impact test | Conforms to EN-60068-27 | ||
| White by drop test | Conforms to EN-60068-32 | ||
| Electromagnetic Compatibility (EMC) | Conforms to EN-61000-4-2,-3,-4 | ||
| Certification | CE, RoHS | ||
| Mounting hole specification | φ4.3mm×4 | ||
| IO-Link Slave parameters | |||
| Type | IACM-DI16P-IOL IACM-DI16PR-IOL IACM-DI16N-IOL IACM-DI16NR-IO | IACM-DO16P-IOL IACM-DO16N-IOL IACM-DO16NR-IOL | |
| lO-Link port number | 1× slave | ||
| lO-Link Process data length | 2 input bytes | ||
| Minimum cycle | 3 ms | ||
| Input. Output quantity | 16 input | ||
| Rated operational voltage | 18--30VDC | ||
| Maximum load current (sensor) | 200mA | - | |
| Maximum load current（actuator） | - | 500mA | |
| Total current UI | ＜1.6A | - | |
| Total current UO | - | ＜2.5A | |
| Indicator Lights | |||
IO Link Run | Green: The communication is down Green flash：Normal communication Red: Communication is interrupted | ||
| PWR | Green: The power supply to the module is Normal Off: The module power supply is not connecte | Green: The power supply to the module is normal Yellow: The auxiliary power supply is not connected | |
| I/O | Green: normal channel signal red: short circuit of port power supply | ||
Automobile assembly line - tightening station control
Packaging machinery - safety interlock system
Electronic manufacturing - test tooling
High-speed test solution:
8DI receives test signal (response time 0.5ms)
8DO controls test excitation (minimum pulse 1ms)
Automobile assembly line - tightening station control
Packaging machinery - safety interlock system
Electronic manufacturing - test tooling
High-speed test solution:
8DI receives test signal (response time 0.5ms)
8DO controls test excitation (minimum pulse 1ms)
