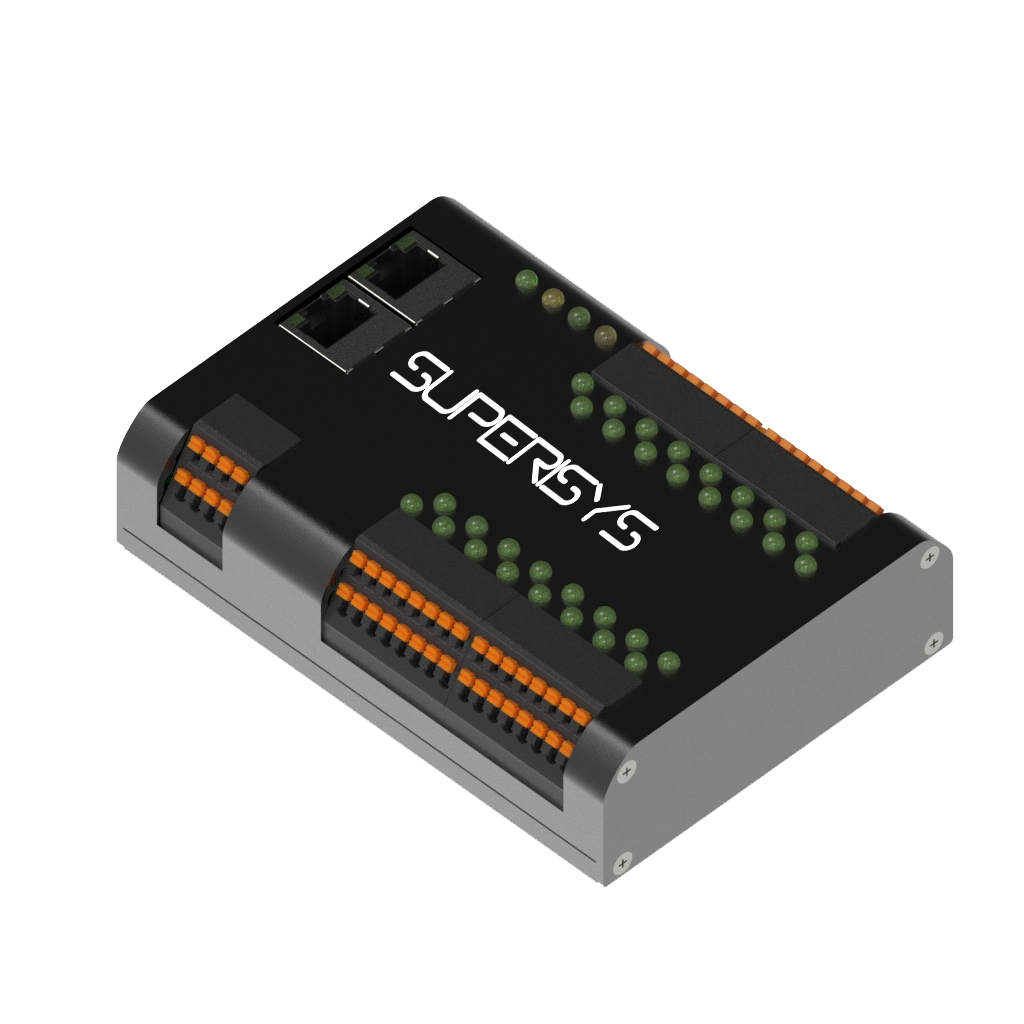

Technical Parameter
| Communication protocol | Model | ||
 | IACM-DI16PDO16P-ECT | IACM-DI16PDO16N-ECT | |
 | IACM-DI16PDO16P-PN | IACM-DI16PDO16N-PN | |
 | IACM-DI16PDO16P-EIP | IACM-DI16PDO16N-EIP | |
| Basic parameter | |||
| Shell material | Aluminium alloy | ||
| Shell color | Anodized black | ||
| Level of protection | IP20 | ||
| Boundary dimension | 86mm×119.6mm×31.9mm | ||
| Weight | 429g | ||
| Operating temperature | -25℃…70℃ | ||
| Storage/transport temperature | -40℃…85℃ | ||
| Operation humidity | 5%…95% | ||
| Storage/transport humidity | 5%…95% | ||
| Operating atmosphere | 80KPa…106KPa | ||
| Preserve/transport atmospheric pressure | 80KPa…106KPa | ||
| application environment | Accord withEN-61131 | ||
| Vibration measurement | Accord withIEC60068-2 | ||
| Shock test | Accord withIEC60068-27 | ||
| Electromagnetic Compatibility (EMC) | Accord withIEC61000-4-2,-3,-4 | ||
| Authentication | CE,RoHS | ||
| Mounting hole specification | Rail mounting | ||
| Product description | 16 Channel input,16 Channel Output | ||
| IP20 | |||
| Independent module | |||
| IO Connection mode | Terminal connection, 16x2 spring terminal, max.1.5mm² | ||
| Digital input | Output parameters | ||
| Number of channels | 16 | Number of channels | 16 |
| Connection type | 8x2 spring terminal, max.1.5mm² | Connection type | 8x2 spring terminal, max.1.5mm² |
| Input type | PNP | Output Type | PNP |
| Input diagnostic type | Supply short circuit diagnosis | Output voltage | 0V (Potential group 24VDC) |
| Switching threshold | EN 61131-2 Type 1/3 | Channel output current | 0.5A/ch |
| Switching frequency | 250 Hz | Load Type | Resistive, Inductive, Light |
| Output diagnostic type | / | Point Diagnostic | |

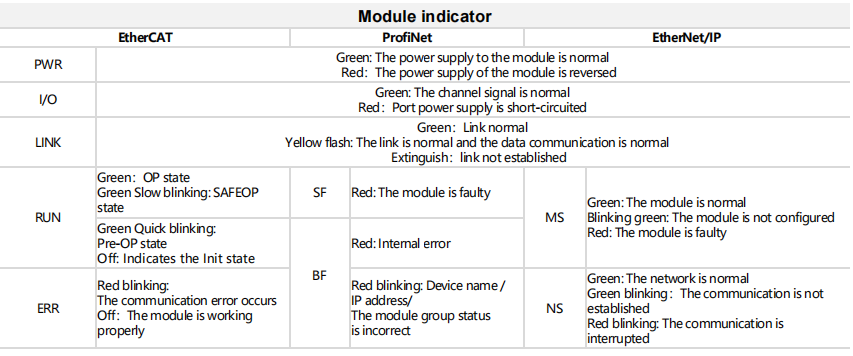

| Module indicator | |||
| Communication Protocol | EtherCat | ProfiNet | EtherNet/IP |
| PWR | Green; The module power supply is normal. | ||
| Red: The power supply of the module is reversed | |||
| I/O | Green: The channel signal is normal | ||
| Red: The port power supply is short-circuited | |||
| LINK | Green: The link is normal | ||
| Yellow flash: The link is normal and the data communication is normal | |||
| Off: The link is not established | |||
 | |||
| Pin definition of the I/O port | |||
| Schematic diagram of power terminal wiring |  | ||

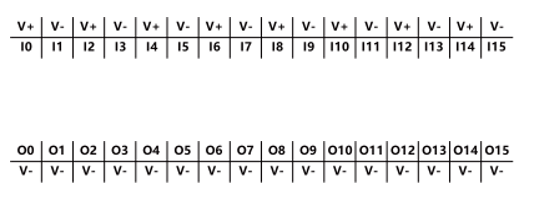

| IO terminal wiring diagram |  | ||
