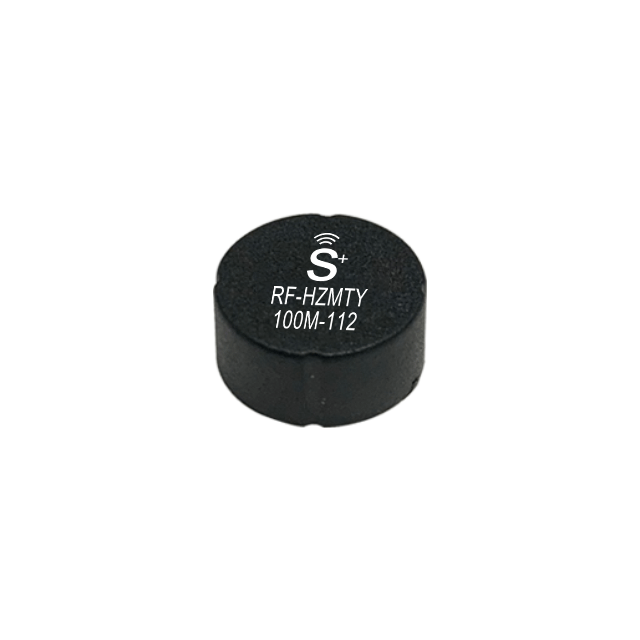

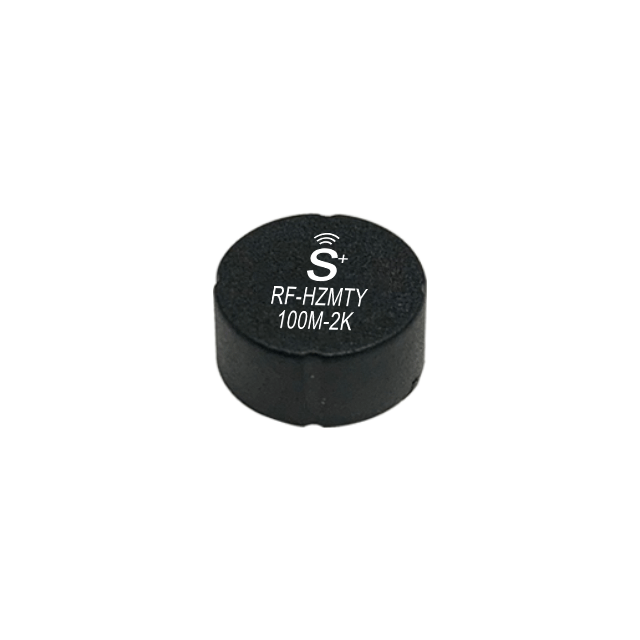

RF-HZMTY100M-112/2K
Superisys
Anti-Metal tag, Embedded metal
| Availability: | |
|---|---|
| Quantity: | |
| Minimum Order Quantity | one |
| Price | A large amount is negotiable |
| Delivery Time | 5-8 Work Days |
| Stock | In Stock |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| product model | RF-HZMTY100M-112 | RF-HZMTY100M-2K |
| working frequency | 13.56MHz | |
| Air port agreement | ISO 15693 | |
| Read distance | 0-8mm(Related to read head) | |
| User memory | 112 Bytes | 2000 Bytes |
| Memory type | EEPROM | FRAM |
| Rewrite cycle | 100,000 times | 10 Billion times |
| Data storage time | 10 years | 10 years |
| size | φ10*4.5mm | |
| Housing material | PBT | |
| Fixed mode | Glueing | |
| IP rating | IP68 | |
| Operating temperature | -40~70℃ | |
| Storage temperature | -40~+125℃ | |
| Metal resistance | Embedded metal or Metal Surface | |
| Minimum Order Quantity | one |
| Price | A large amount is negotiable |
| Delivery Time | 5-8 Work Days |
| Stock | In Stock |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| product model | RF-HZMTY100M-112 | RF-HZMTY100M-2K |
| working frequency | 13.56MHz | |
| Air port agreement | ISO 15693 | |
| Read distance | 0-8mm(Related to read head) | |
| User memory | 112 Bytes | 2000 Bytes |
| Memory type | EEPROM | FRAM |
| Rewrite cycle | 100,000 times | 10 Billion times |
| Data storage time | 10 years | 10 years |
| size | φ10*4.5mm | |
| Housing material | PBT | |
| Fixed mode | Glueing | |
| IP rating | IP68 | |
| Operating temperature | -40~70℃ | |
| Storage temperature | -40~+125℃ | |
| Metal resistance | Embedded metal or Metal Surface | |
The product has a small size, making it suitable for jigs/tools with strict size requirements.
It has strong metal resistance, allowing for embedded metal installations.
The product has a large storage capacity, making it convenient to store various management information.
Using FRAM memory, it supports up to 100 billion read/write cycles.
Concealed and durable
22mm ultra-thin round appearance, can be embedded in equipment or pasted on the surface of tools, anti-vibration and anti-chemical corrosion.
High cost performance
Compared with customized HF RFID Tags, this series reduces bulk procurement costs with standardized design.
Global compliance
Complies with ETSI, FCC and other radio frequency regulations, suitable for deployment in Europe, America, Asia and other regions.
Flexible encoding
Supports UID solidification or user-defined encoding, adaptable to different management systems (such as ERP, MES).
When used for automated assembly lines and tool management in machining, the tag can be directly embedded into tools/fixtures and undergo dynamic balancing tests.
The tag stores information about the tools/fixtures, such as parameters of the tools and work-in-progress items, service life, etc. At the identification nodes.
The reader can collect information about the tools/fixtures and work-in-progress items from the tag, which is then processed by the backend system. This realizes full lifecycle management and automatic loading of machining processes.
The product has a small size, making it suitable for jigs/tools with strict size requirements.
It has strong metal resistance, allowing for embedded metal installations.
The product has a large storage capacity, making it convenient to store various management information.
Using FRAM memory, it supports up to 100 billion read/write cycles.
Concealed and durable
22mm ultra-thin round appearance, can be embedded in equipment or pasted on the surface of tools, anti-vibration and anti-chemical corrosion.
High cost performance
Compared with customized HF RFID Tags, this series reduces bulk procurement costs with standardized design.
Global compliance
Complies with ETSI, FCC and other radio frequency regulations, suitable for deployment in Europe, America, Asia and other regions.
Flexible encoding
Supports UID solidification or user-defined encoding, adaptable to different management systems (such as ERP, MES).
When used for automated assembly lines and tool management in machining, the tag can be directly embedded into tools/fixtures and undergo dynamic balancing tests.
The tag stores information about the tools/fixtures, such as parameters of the tools and work-in-progress items, service life, etc. At the identification nodes.
The reader can collect information about the tools/fixtures and work-in-progress items from the tag, which is then processed by the backend system. This realizes full lifecycle management and automatic loading of machining processes.
FAQ
Q1: Does the HF RFID Tag require an external antenna on the metal surface?
A: No external antenna is required. It has a built-in anti-metal substrate and can be directly attached to the metal surface for use.
Q2: How is the high temperature resistance of the tag?
A: The operating temperature range is -40℃~125℃, suitable for high-temperature sterilization (such as medical equipment) or low-temperature storage scenarios.
Q3: Does it support batch encoding?
A: Yes. UID or user data can be quickly written in batches through the reader/writer to improve deployment efficiency.
Q4: How long is the life of the tag?
A: Passive design, theoretical life of more than 10 years, read and write times ≥100,000 times, no daily maintenance requirements.
Q5: How to ensure data security?
A: Supports password protection and data encryption to prevent unauthorized tampering or cloning.
FAQ
Q1: Does the HF RFID Tag require an external antenna on the metal surface?
A: No external antenna is required. It has a built-in anti-metal substrate and can be directly attached to the metal surface for use.
Q2: How is the high temperature resistance of the tag?
A: The operating temperature range is -40℃~125℃, suitable for high-temperature sterilization (such as medical equipment) or low-temperature storage scenarios.
Q3: Does it support batch encoding?
A: Yes. UID or user data can be quickly written in batches through the reader/writer to improve deployment efficiency.
Q4: How long is the life of the tag?
A: Passive design, theoretical life of more than 10 years, read and write times ≥100,000 times, no daily maintenance requirements.
Q5: How to ensure data security?
A: Supports password protection and data encryption to prevent unauthorized tampering or cloning.
