RF-HZMTZ52T-112
Superisys
Non Anti-Metal Tag
| Availability: | |
|---|---|
| Quantity: | |

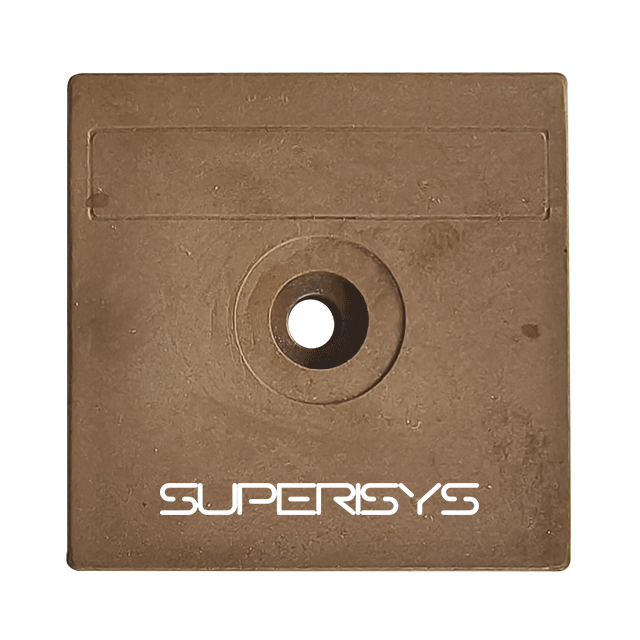

High temperature square non-metal tag is a high frequency 13.56MHz RFID tag designed for high temperature environment.
It adopts PPS heat-resistant material and is suitable for asset tracking and management of non-metal surfaces (such as plastic, ceramic, silicone, PCB board, etc.)
| Minimum Order Quantity | one |
| Price | A large amount is negotiable |
| Delivery Time | 5-8 Work Days |
| Stock | In Stock |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| product model | RF-HZMTZ52T-112 |
| working frequency | 13.56MHz |
| Air port agreement | ISO 15693 |
| Read distance | 0-110mm(Related to read head) |
| User memory | 112 Bytes |
| Memory type | EEPROM |
| Rewrite cycle | 100,000 times |
| Data storage time | 10 years |
| size | φ51.5*51.5*6.35mm |
| Housing material | PPS |
| Fixed mode | Scewing |
| IP rating | IP68 |
| Operating temperature | -25~70℃ |
| Storage temperature | -40~+230℃ |
| Metal resistance | Antimetal metal |
High temperature square non-metal tag is a high frequency 13.56MHz RFID tag designed for high temperature environment.
It adopts PPS heat-resistant material and is suitable for asset tracking and management of non-metal surfaces (such as plastic, ceramic, silicone, PCB board, etc.)
| Minimum Order Quantity | one |
| Price | A large amount is negotiable |
| Delivery Time | 5-8 Work Days |
| Stock | In Stock |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| product model | RF-HZMTZ52T-112 |
| working frequency | 13.56MHz |
| Air port agreement | ISO 15693 |
| Read distance | 0-110mm(Related to read head) |
| User memory | 112 Bytes |
| Memory type | EEPROM |
| Rewrite cycle | 100,000 times |
| Data storage time | 10 years |
| size | φ51.5*51.5*6.35mm |
| Housing material | PPS |
| Fixed mode | Scewing |
| IP rating | IP68 |
| Operating temperature | -25~70℃ |
| Storage temperature | -40~+230℃ |
| Metal resistance | Antimetal metal |
A. 0-110mm Reader Range
B. Temperature range : -40°C ~ +230°C , suitable for high temperature sterilization, welding, drying and other scenarios.
C. Protection level IP68 (dustproof, waterproof, and chemical-resistant)
D. Installation method: Screw fixing
A. High-temperature production environment tracking
Injection molding/mold management: embed high-temperature resistant labels to record the number of times the mold is used and the temperature curve, and optimize the production cycle.
B. Medical and food high-temperature sterilization
Medical device packages: withstand high-pressure steam sterilization (above 121°C), record the number of sterilization times and expiration date.
C. Chemical and energy industries
High-temperature reactor/pipeline identification: mark equipment parts made of plastic or ceramic materials to prevent manual recording errors.
Battery production: track battery modules during drying or aging testing
A. 0-110mm Reader Range
B. Temperature range : -40°C ~ +230°C , suitable for high temperature sterilization, welding, drying and other scenarios.
C. Protection level IP68 (dustproof, waterproof, and chemical-resistant)
D. Installation method: Screw fixing
A. High-temperature production environment tracking
Injection molding/mold management: embed high-temperature resistant labels to record the number of times the mold is used and the temperature curve, and optimize the production cycle.
B. Medical and food high-temperature sterilization
Medical device packages: withstand high-pressure steam sterilization (above 121°C), record the number of sterilization times and expiration date.
C. Chemical and energy industries
High-temperature reactor/pipeline identification: mark equipment parts made of plastic or ceramic materials to prevent manual recording errors.
Battery production: track battery modules during drying or aging testing
FAQ
Q1: Does the HF RFID Tag require an external antenna on the metal surface?
A: No external antenna is required. it has a built-in anti-metal substrate and can be directly attached to the metal surface for use.
Q2: How is the high temperature resistance of the tag?
A: The operating temperature range is -40℃~105℃, suitable for high-temperature sterilization (such as medical equipment) or low-temperature storage scenarios.
Q3: Does it support batch encoding?
A: Yes. UID or user data can be quickly written in batches through the reader/writer to improve deployment efficiency.
Q4: How long is the life of the tag?
A: Passive design, theoretical life of more than 10 years, read and write times ≥100,000 times, no daily maintenance requirements.
Q5: How to ensure data security?
A: Supports password protection and data encryption to prevent unauthorized tampering or cloning.
FAQ
Q1: Does the HF RFID Tag require an external antenna on the metal surface?
A: No external antenna is required. it has a built-in anti-metal substrate and can be directly attached to the metal surface for use.
Q2: How is the high temperature resistance of the tag?
A: The operating temperature range is -40℃~105℃, suitable for high-temperature sterilization (such as medical equipment) or low-temperature storage scenarios.
Q3: Does it support batch encoding?
A: Yes. UID or user data can be quickly written in batches through the reader/writer to improve deployment efficiency.
Q4: How long is the life of the tag?
A: Passive design, theoretical life of more than 10 years, read and write times ≥100,000 times, no daily maintenance requirements.
Q5: How to ensure data security?
A: Supports password protection and data encryption to prevent unauthorized tampering or cloning.
