ISO 11784/11785 Protocol LF RFID Reader Shock Resistant 2mm -40.C To 85.C Aluminum
ISO 11784/11785 Protocol LF RFID Reader Shock Resistant 2mm -40.C To 85.C Aluminum ISO 11784/11785 Protocol LF RFID Reader Shock Resistant 2mm -40.C To 85.C Aluminum
ISO 11784/11785 Protocol LF RFID Reader Shock Resistant 2mm -40.C To 85.C Aluminum ISO 11784/11785 Protocol LF RFID Reader Shock Resistant 2mm -40.C To 85.C Aluminum
ISO 11784/11785 Protocol LF RFID Reader Shock Resistant 2mm -40.C To 85.C Aluminum ISO 11784/11785 Protocol LF RFID Reader Shock Resistant 2mm -40.C To 85.C Aluminum

loading

ISO 11784/11785 Protocol LF RFID Reader Shock Resistant 2mm -40.C To 85.C Aluminum

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
CIDRW for semiconductors

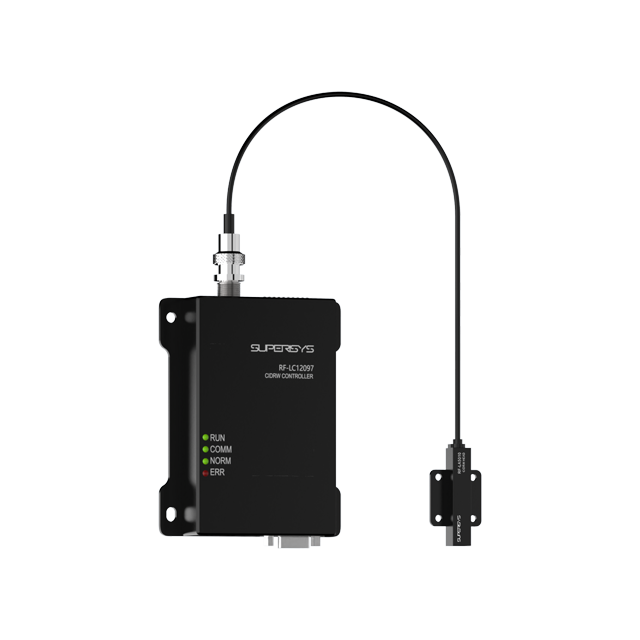

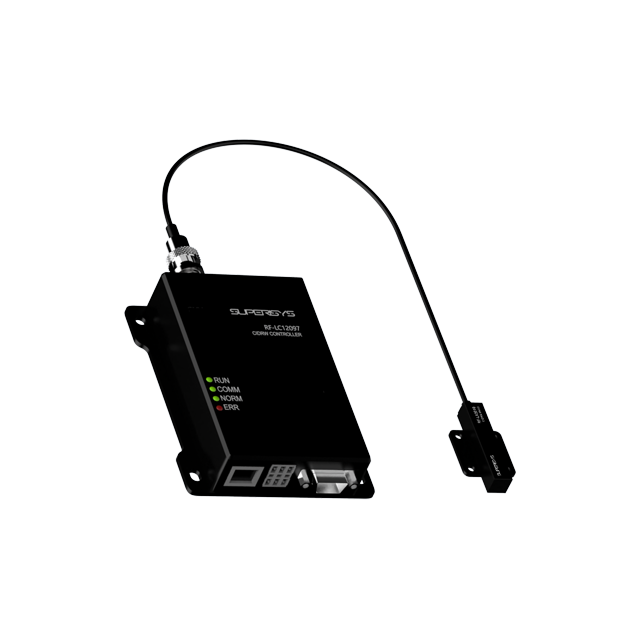

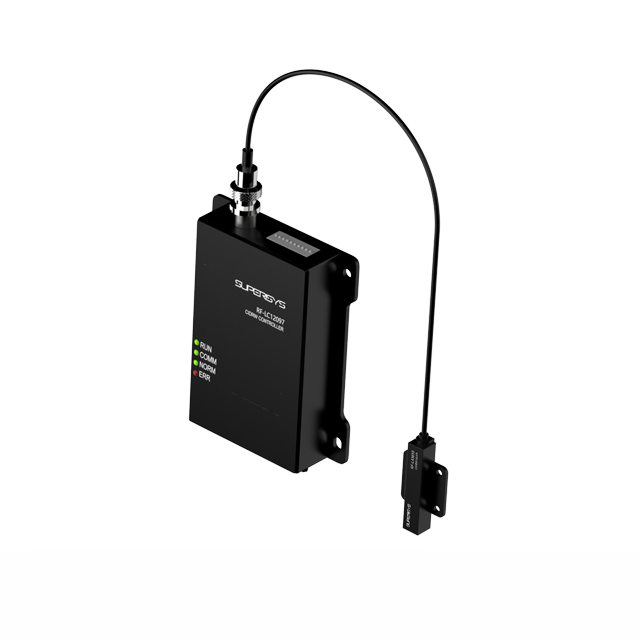

  • RF-LC12097

  • RS485, RS232, ISO11784, ISO11785

Availability:
Quantity:
Inquire Add to Basket
Storage TemperatureMateriaDimensionsShock ResistanceProtocolApplicationFrequency
-40°C To +85°CAluminium Alloy120*97*27.5Mm2 Mm (f= 5…29.5 Hz ) , EN 60068-2-67 Gn (f= 29.5…150 Hz) , EN 60068-2-6ISO 11784/11785Access Control, Animal Tracking, Inventory ManagementHighlight


Payment & Shipping Terms


Minimum Order QuantityPriceDelivery TimePayment TermsSupply Ability
oneThe price is negotiable in large quantities1-2 work daysT/T, Western Union1000 per day


Features


  • 134.2K frequency, support for IS011784, IS011785 protocol • Support for Texas Instruments (TI) manufactured RI-TRP-DR2B.

  • RI-TRP-WVR2B tag ID

  • RS232, RS485, Ethernet communication

  • SECS protocol, MODBUS RTU and MODBUSTCP protocol

  • CIDRW controller is available in various models, can support 1, 2, 4, 16 CIDRW read head connection


Technical Parameters


EncryptionAES 128-bit
MaterialAluminium Alloy
ProtocolISO 11784/11785
Memory1360 Bits
Operating Temperature-25°C To +70°C
Dimensions120*97*27.5Mm
Frequency134.2 KHz
Shock Resistance2 Mm (f= 5…29.5 Hz ) , EN 60068-2-67 Gn (f= 29.5…150 Hz) , EN 60068-2-6
ApplicationAccess Control, Animal Tracking, Inventory Management
WaterproofIP20, EN 60529


Support

The system applies to the following SEMI standards:

  • SEMI E99 Carrier ID read/write standard

  • SEMI E37 High-speed SECS Messaging Service Common Service (HSMS)

  • SEMI E5 Device Communication Standard 2 Message Content (SECS II)

  • SEMI E4 Device Communication Standard 1 Message Content (SECS I)



Applications
