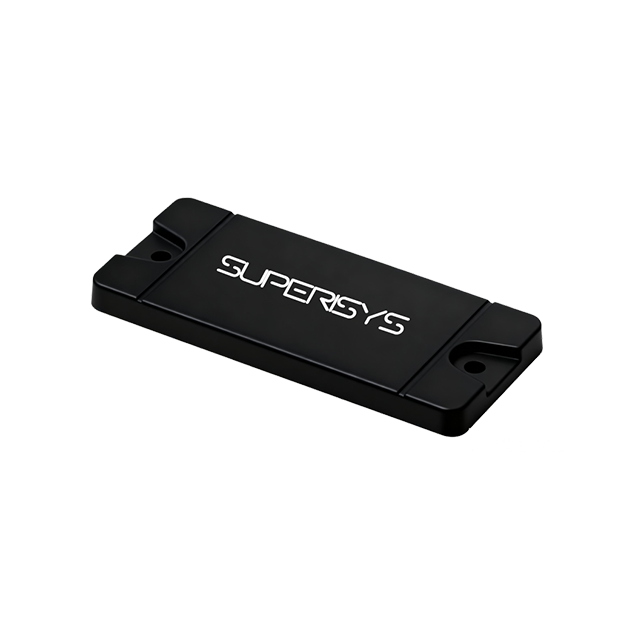

RF-UZMTC10632M-U9
Superisys
Anti-Metal tag
Availability: | |
---|---|
Quantity: | |
1. Anti-metal interference
The anti-metal UHF RFID tag is made of ABS material
2. High sensitivity and long-distance reading
The tag is equipped with a high-sensitivity chip NXP, .The reading distance 3.6m
3.Data security and reliability
Complies with ISO/IEC 18000-6C EPC Class1 Gen2 standards to ensure the stability and reliability of data transmission. It has a 96-bit TID storage area and a 32-bit access password to provide strong protection for data security.
Parameter | Specification |
Minimum Order Quantity | one |
Price | Large quantity price negotiable |
Delivery Time | 5-8 work days |
Payment Terms | T/T, Western Union |
Supply Ability | 1000 per day |
Model | RF-UZMTC10632M-U9 |
Air mouth agreement | SO 18000-6C |
Class 1 Gen 2 | |
Working frequency | 860-9608 MHz |
Chip | NXP UCODE9 |
EPC memory size | 96 bits |
USER memory size | 0bits |
TID | 96bits |
Size (mm) | 106*32*10mm |
Canning material | ABS |
Way to install | Gluing/Screwing |
Class | IP65 |
Weight | 15g |
Operating temperature | -25℃~70℃ |
Storage temperature | -30℃~85℃ |
Metal resistance | Antimetal |
Read distance | 0-10m |
1. Anti-metal interference
The anti-metal UHF RFID tag is made of ABS material
2. High sensitivity and long-distance reading
The tag is equipped with a high-sensitivity chip NXP, .The reading distance 3.6m
3.Data security and reliability
Complies with ISO/IEC 18000-6C EPC Class1 Gen2 standards to ensure the stability and reliability of data transmission. It has a 96-bit TID storage area and a 32-bit access password to provide strong protection for data security.
Parameter | Specification |
Minimum Order Quantity | one |
Price | Large quantity price negotiable |
Delivery Time | 5-8 work days |
Payment Terms | T/T, Western Union |
Supply Ability | 1000 per day |
Model | RF-UZMTC10632M-U9 |
Air mouth agreement | SO 18000-6C |
Class 1 Gen 2 | |
Working frequency | 860-9608 MHz |
Chip | NXP UCODE9 |
EPC memory size | 96 bits |
USER memory size | 0bits |
TID | 96bits |
Size (mm) | 106*32*10mm |
Canning material | ABS |
Way to install | Gluing/Screwing |
Class | IP65 |
Weight | 15g |
Operating temperature | -25℃~70℃ |
Storage temperature | -30℃~85℃ |
Metal resistance | Antimetal |
Read distance | 0-10m |
1.Automotive manufacturing and maintenance
Parts tracking: Tracking metal parts during the automotive manufacturing process.
Vehicle management: Installing tags on vehicles for vehicle identification and management
2.Industrial Manufacturing
Equipment Management: Used to track and manage factory equipment, tools and machines to improve asset management efficiency.
Production Line Management: Install tags on metal parts or products to achieve automated tracking of the production process, improve production efficiency and quality control
1.Automotive manufacturing and maintenance
Parts tracking: Tracking metal parts during the automotive manufacturing process.
Vehicle management: Installing tags on vehicles for vehicle identification and management
2.Industrial Manufacturing
Equipment Management: Used to track and manage factory equipment, tools and machines to improve asset management efficiency.
Production Line Management: Install tags on metal parts or products to achieve automated tracking of the production process, improve production efficiency and quality control
